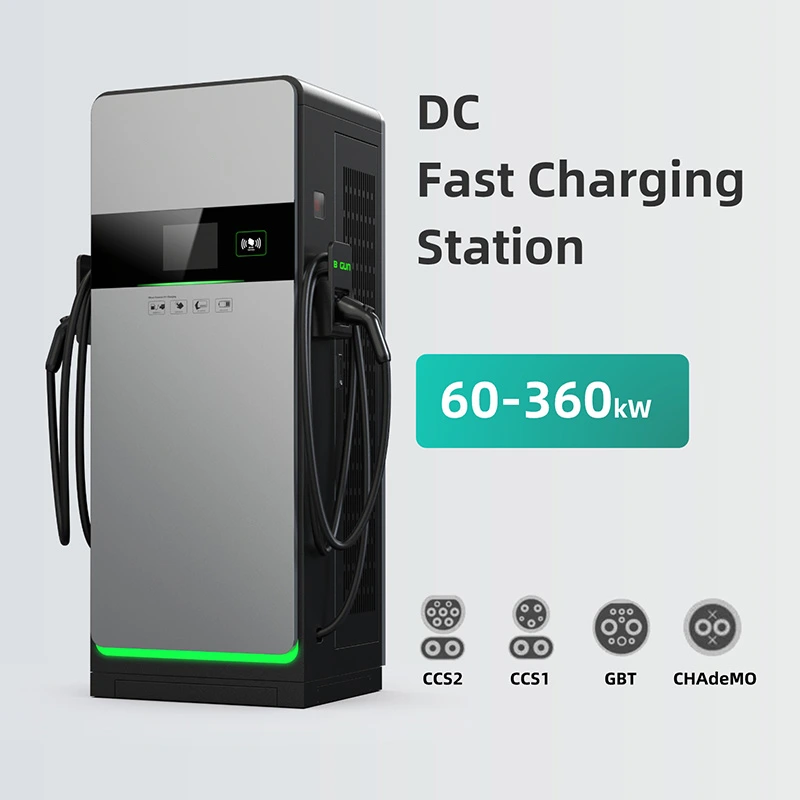

DC Fast Charging Station OCPP 1.6J Customized POS Payment Factory Direct Price
● High Power (60-360kW)
● Multiple Interfaces
● Protocol Compatibility
● High Efficiency
● Wide Temperature Range
● Protection Rating (IP55)
● User-Friendly
● Multilingual Support
● Multiple Safety
● Versatile Communication
● International Standards & CE Certified
● Modular Design
Features
High Power (60-360kW): Rapid Charging, Time Savings.
Multiple Interfaces: CCS2, CCS1, GBT, CHAdeMO, Compatible with Various EV Models.
Protocol Compatibility: OCPP 1.6J Support, Remote Management and Monitoring.
High Efficiency: Over 95% Efficiency, Lower Energy Costs.
Wide Temperature Range: Operates in -30°C to 50°C.
Protection Rating (IP55): Suitable for Harsh Environments.
User-Friendly: 10.1-Inch Touch Screen, Intuitive Interface.
Multilingual Support: Available in Major Global Languages.
Multiple Safety: Short Circuit, Low Voltage, Overcurrent Protection.
Versatile Communication: 4G, Wi-Fi, Ethernet, OCPP 1.6J Support. Also supports RFID card, APP, and POS payments.
International Standards & CE Certified: Complies with IEC 61851-1, IEC 61851-21, LVD 2014/35/EU, EMC 2014/30/EU, IEC 62955.
Modular Design: Easier Maintenance, Enhanced Reliability.
parameter
|
Models |
WLE1213-DC60kW |
WLE1213-DC120kW |
WLE1213-DC180kW |
WLE1213-DC240kW |
WLE1213-DC360kW |
|
Rated Power |
60KW |
120KW |
180KW |
240KW |
360KW |
|
Charging Outlets |
CCS1/CCS2/GBT/CHAdeMO |
||||
|
Shell Material |
SPCC Carbon Steel |
||||
|
AC input voltage |
380V±15%/400V±10%/480V±10% 3P+N+PE |
||||
|
AC input frequency |
50Hz/60Hz |
||||
|
Max Output voltage |
CCS 1000Vdc,GBT 1000Vdc ,CHAdeMO 500Vdc,3P+N+PE |
||||
|
Max Output Current |
CCS 300A,GBT 250A,CHAdeMO 125A |
||||
|
Number of plugs |
DC*2 |
DC*2 |
DC*2 |
DC*2 |
DC*2 |
|
Protection Level |
IP55 |
||||
|
IK Rating |
IK10 |
||||
|
Operating Temperature |
-30°C to + 50°C |
||||
|
Storage temperature |
-40°C to + 70°C |
||||
|
Communication |
OCPP1.6J（Upgradable OCPP2.0 ） |
||||
|
HMI |
10.1Inch LCD Screen |
||||
|
Connectivity Authorization |
RFID,APP,POS |
||||
|
Installation Method |
Floor mounted |
||||
|
Cable Length |
5m or 7m(optional) |
||||
|
Functional design |
Ethernet/RS485/WIFI/4G Communication(custom) |
||||
|
Acoustic Noise |
＜60dB |
＜60dB |
＜60dB |
＜60dB |
＜60dB |
|
Altitude |
≤2000 m |
||||
|
Dimension(L*W*H) |
800*770*1750mmmm |
||||
|
Weight |
≥272kg |
||||
|
Charging Interface |
DIN70121/DIN70122/ISO15118 |
||||
|
Certificate |
TUV CE/EN IEC61851-1,IEC61851-21,IEC61851-23.IEC61851-24,LVD 2014/35/EU,EMC 2014/30/EU |
||||
product Display
