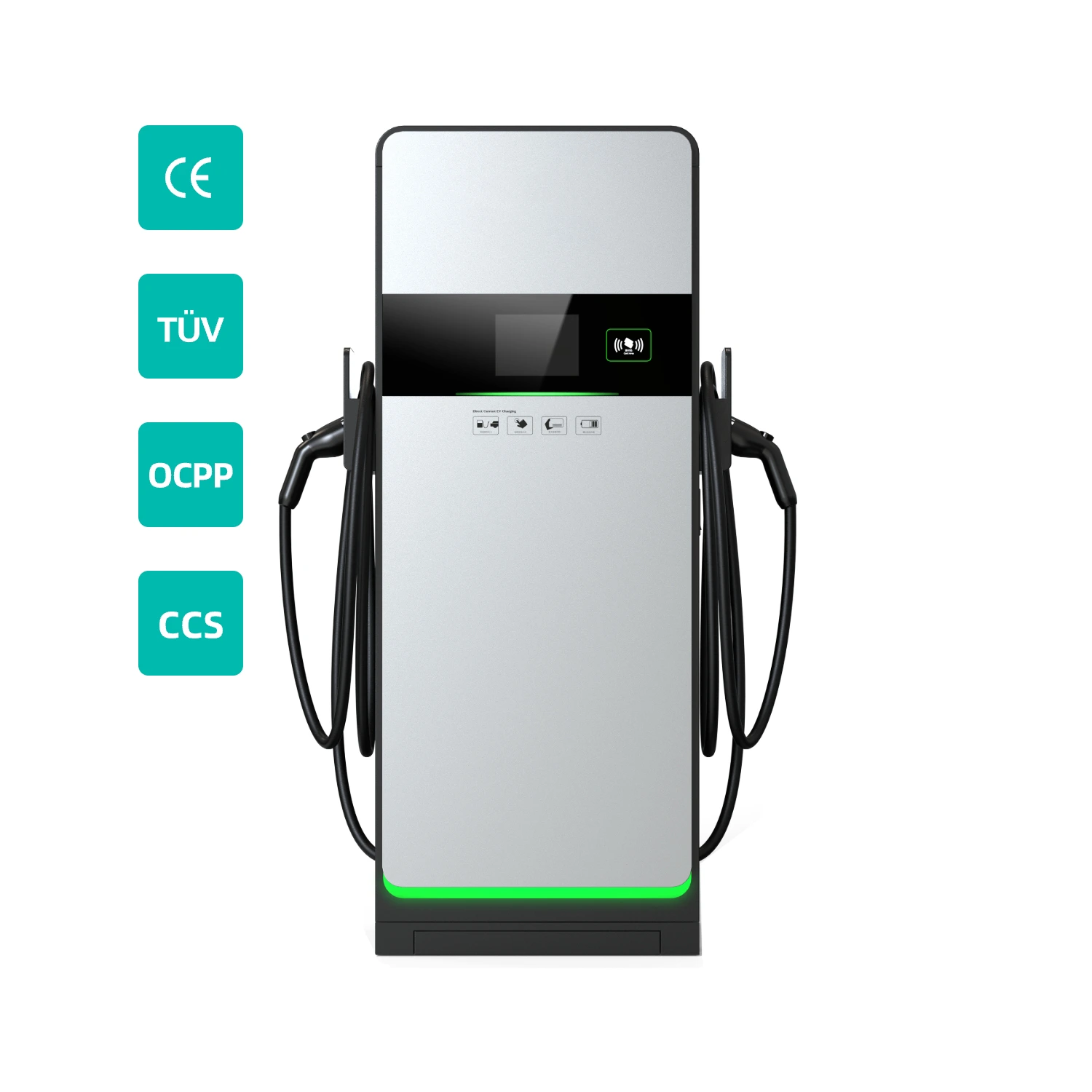

Public Commercial Level 3 Dc 2 Gun Ev Solar Fast Electric Car Ev Charging Station
DC EV Charging Station offers a cutting-edge, efficient solution for rapid electric vehicle charging. Featuring a powerful 360kW output, it significantly reduces charging times, enhancing the convenience of electric mobility.
Technical Specs:
Input: AC 380V, Standards: Complies with CCS, GBT, CHAdeMO.
Durability: Weatherproof and reliable in diverse conditions.
The DC EV Charging Station is your gateway to a faster, safer, and more sustainable electric future. Experience the convenience of advanced charging technology with us.
Features
Fast Charging: Up to 360kW for quick power-ups.
Intelligent Management: Smart technology optimizes charging, prolonging battery life.
Safety First: Built-in protections against electrical hazards.
Eco-Friendly: Energy-efficient with sustainable materials.
User-Friendly Design: Intuitive interface and multilingual support for ease of use.
Wide Application: Ideal for commercial areas, public spaces, residential complexes, and long-distance travel stations.
parameter
|
Models |
WLE1213-DC60kW |
WLE1213-DC120kW |
WLE1213-DC180kW |
WLE1213-DC240kW |
WLE1213-DC360kW |
|
Rated Power |
60KW |
120KW |
180KW |
240KW |
360KW |
|
Charging Outlets |
CCS1/CCS2/GBT/CHAdeMO |
||||
|
Shell Material |
SPCC Carbon Steel |
||||
|
AC input voltage |
380V±15%/400V±10%/480V±10% 3P+N+PE |
||||
|
AC input frequency |
50Hz/60Hz |
||||
|
Max Output voltage |
CCS 1000Vdc,GBT 1000Vdc ,CHAdeMO 500Vdc,3P+N+PE |
||||
|
Max Output Current |
CCS 300A,GBT 250A,CHAdeMO 125A |
||||
|
Number of plugs |
DC*2 |
DC*2 |
DC*2 |
DC*2 |
DC*2 |
|
Protection Level |
IP55 |
||||
|
IK Rating |
IK10 |
||||
|
Operating Temperature |
-30°C to + 50°C |
||||
|
Storage temperature |
-40°C to + 70°C |
||||
|
Communication |
OCPP1.6J（Upgradable OCPP2.0 ） |
||||
|
HMI |
10.1Inch LCD Screen |
||||
|
Connectivity Authorization |
RFID,APP,POS |
||||
|
Installation Method |
Floor mounted |
||||
|
Cable Length |
5m or 7m(optional) |
||||
|
Functional design |
Ethernet/RS485/WIFI/4G Communication(custom) |
||||
|
Acoustic Noise |
＜60dB |
＜60dB |
＜60dB |
＜60dB |
＜60dB |
|
Altitude |
≤2000 m |
||||
|
Dimension(L*W*H) |
800*770*1650mmmm |
||||
|
Weight |
≥272kg |
||||
|
Charging Interface |
DIN70121/DIN70122/ISO15118 |
||||
|
Certificate |
TUV CE/EN IEC61851-1,IEC61851-21,IEC61851-23.IEC61851-24,LVD 2014/35/EU,EMC 2014/30/EU |
||||
product Display
