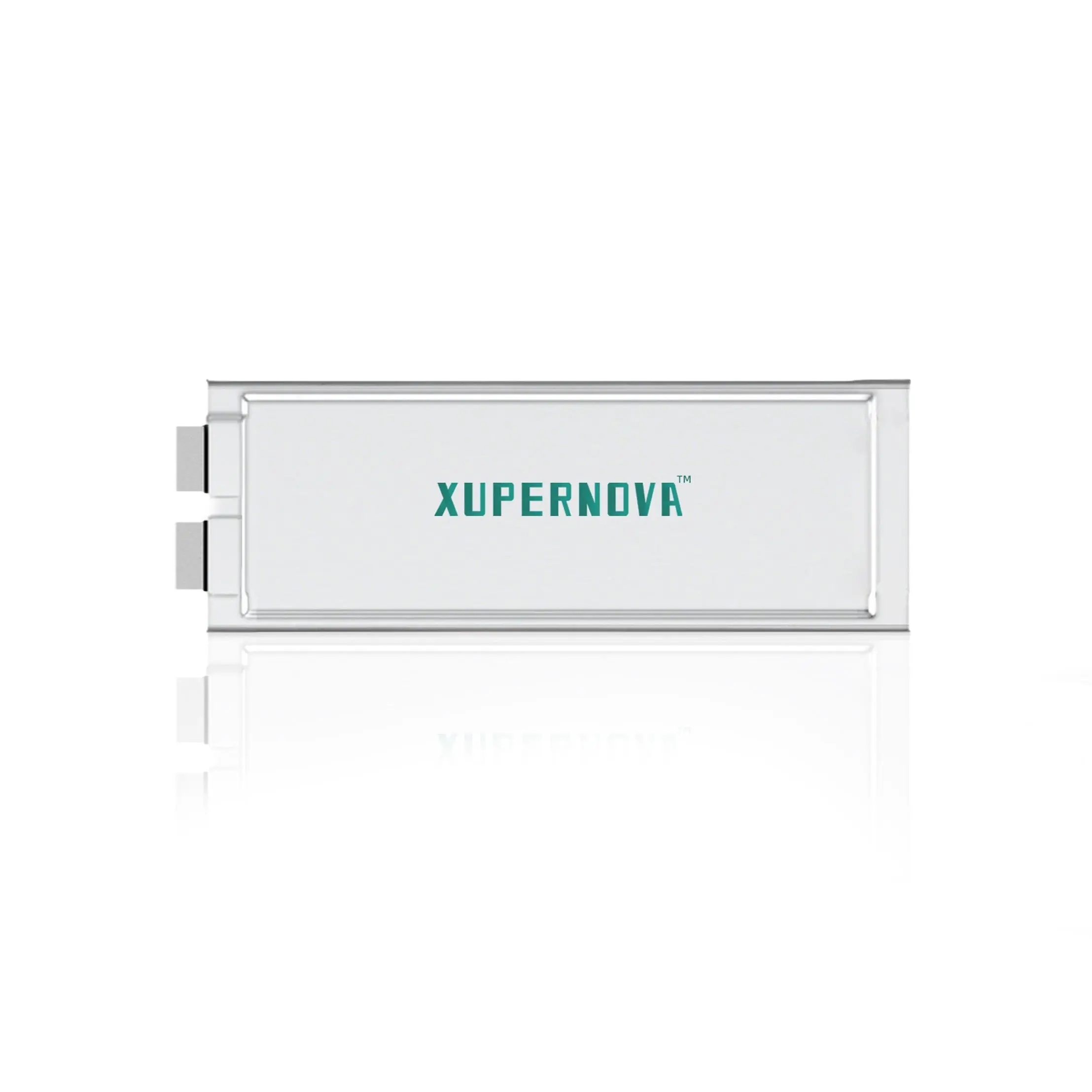

Large UAV Battery Accessories 23000mAh 3.7V 1C/5C Solid-State Lithium-Ion Test Battery Cell
The Xupernova Solid-State Lithium-Ion Battery Cell (Model: LP1074172 )features a 23000mAh capacity, 3.7V voltage, and a 1C/5C discharge rate, making it suitable for applications like power tools and portable devices.
✅ Key Features
Ultra-High Capacity: 23,000mAh for extended power supply
Exceptional Energy Density: Up to 300Wh/kg, delivering more power in a compact form
Advanced Solid-State Technology: Safer, more stable, and environmentally friendly
✅ Key Features
Ultra-High Capacity: 23,000mAh for extended power supply
Exceptional Energy Density: Up to 300Wh/kg, delivering more power in a compact form
Advanced Solid-State Technology: Safer, more stable, and environmentally friendly
● CE, UL, RoHS certified
● 5C Peak Discharge
● ≥98% charge efficiency
● 90% lower short-circuit risk
● 5C Peak Discharge
● ≥98% charge efficiency
● 90% lower short-circuit risk
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Advantages
Long Cycle Life: Over 1000 charge/discharge cycles
Wide Temperature Tolerance: Performs in extreme environments
High Current Discharge: Ideal for demanding industrial and commercial use
Application Scenarios
Industrial Drones
Power Tools
Portable Energy Storage Systems
High-Performance Robotics
Medical Equipment & More
Specification
| Type | LP1074172 | Capacity (mAh) | 23000 | |||||
| Dimensions (LWT/mm) | 172*74*10 | Standard Voltage (v) | 3.7 | |||||
| Working Voltage (v) | 2.75-4.2 | Charging Temperature (°C) | 0 - 45 | |||||
| working steadiness (°C) | -40-60 | Maximum Continuous charging current(A) |
23(1C) | |||||
| Maximum Continuous discharge current(A) |
105(3C) | Pulse Current(A)@10C | 230(10C) | |||||
| Cycle Life@80% 0.5C/3C | >1000 | Energy Density (Wh/Kg) | 300 | |||||
| Weight (g) | 302 | |||||||
FAQs For Xupernova Solid State Lithium Ion Battery Pack
1
Can I get free sample?
Generally we don't provide free sample, but we canreturn sample cost when the buyer plant a bulk order.
2
How should I pay?
You can pay via T/T.100% T/T in advance for samples. For large quantities, 30% T/T in advance as soon as orderconfirmed and the balance before shipping via T/T.
3
What is your package looks like? Can I have the customized package?
We have factory's current standard package, customized print logo shall be complied to buyer's requirements, and the extra charges will be borne by the buyers, for more details, please contact us.
4
What is delivery time if we place an order?
It depends order quantities. Usually, we can deliver goods within 5 -15 working days for small orders, for more QTY. order, let's confirm when you place offical order.
5
How can you guarantee quality?
Always have a pre-production sample before mass production; always conduct final inspection before shipment.
